Frequently asked questions about Unmanaged Switch

設定不要でルーターやPCのとLANケーブルで接続するだけです。入力や出力端子などもありません。

いいえ。設定不要で利用できるスイッチングハブで、IPアドレスもありません。

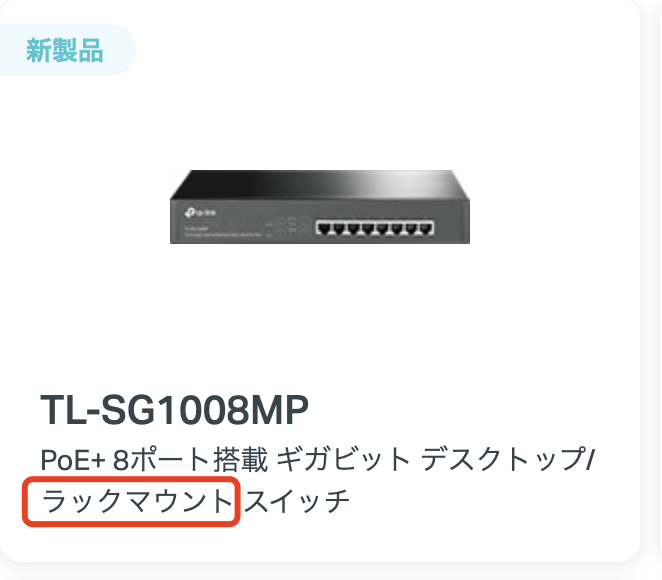

製品名に"ラックマウント"と記載のある機種は設置可能です。HP上で機種のソートができるのでご利用ください。

Please refer to FAQ: Selecting the Correct Mounting Brackets to select the correct mounting brackets.

Normally there is a wall-mounted hole at the bottom of the switch if it is wall mounted. We can also check it on the https://www.tp-link.com/business-networking/unmanaged-switch/, choosing Wall-Mounting as factor for Filter to check the model which can be wall mounted.

Switches that contain the letter “P” in their model support PoE. For example, TL-SG1005P.

Yes, you can connect a non-PoE device to a PoE port for data transmission with no problem, but the non-PoE device cannot be powered by switch.

In fact, when there is a device connected to its PoE port, it will automatically detect the connection. If it is an ordinary device such as a computer, the PoE port will just work as an Ethernet port to transfer data only, which won't damage ordinary devices.

Switch can communicate with devices as usual with Shielded Twisted Pair connected. But to make shielding function take effect, the switch needs to be grounded.

Please refer to Q9 to verify which model supports grounding.

Plastic –shell switches cannot be grounded, and here we are talking about steel-shell switches:

a. Check whether unmanaged switch is rack mountable or not. Most Rack mount switches can be Earth Grounded.

b. Switch with a three-phase power supply can be grounded. In three-phase power supply, the Protecting Earth cable connects to the shell of the steel switch, which allows the switch to be Earth Grounded.

c. Switch with a grounding terminal on the back can be grounded. We can connect a grounding cable to Ground terminal on the switch.

For more details about Earth Grounding, please refer to Lightning Protection Guide

Jumbo Frame parameter of TP-Link switches can be found in the product specification on our official website. Take the example of unmanaged switch TL-SG1024, we can go to product specification for TL-SG1024, in “performance” column, we can see that it supports Jumbo Frame with maximum 10K Bytes in frame size.

If there is no declaration for Jumbo Frame in product specification for one switch, that means this model number does not support jumbo frame feature, that is to say, the maximum frame size of this switch is 1522 Bytes/Supporting Baby Jumbo frame.

More QA of Jumbo Frame feature, please refer to Frequently Asked Questions Regarding Jumbo Frame (MTU) about TP-Link switches.
