EAP775-Wall_Installation Guide

Hardware Installation Guide

Bookmarks Download

01-10-2026

50

Table of Contents

Package Contents

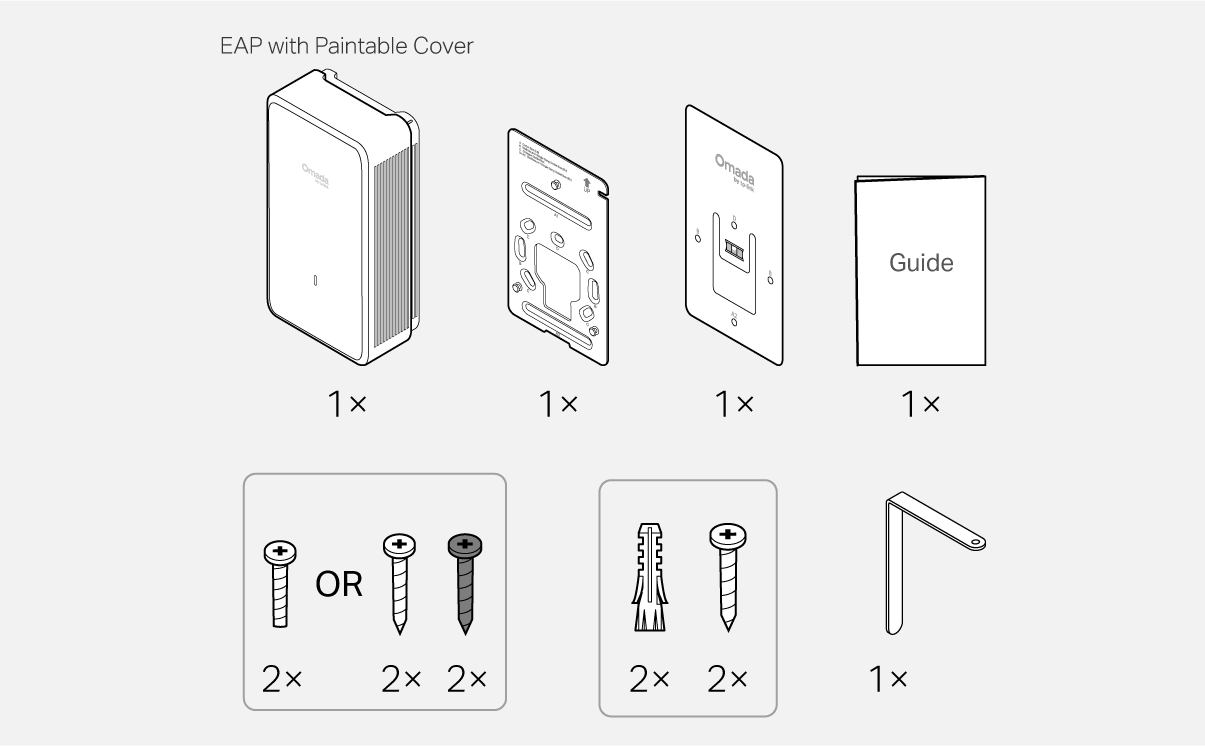

Packet Contents

Note: Accessories may vary by region and model.

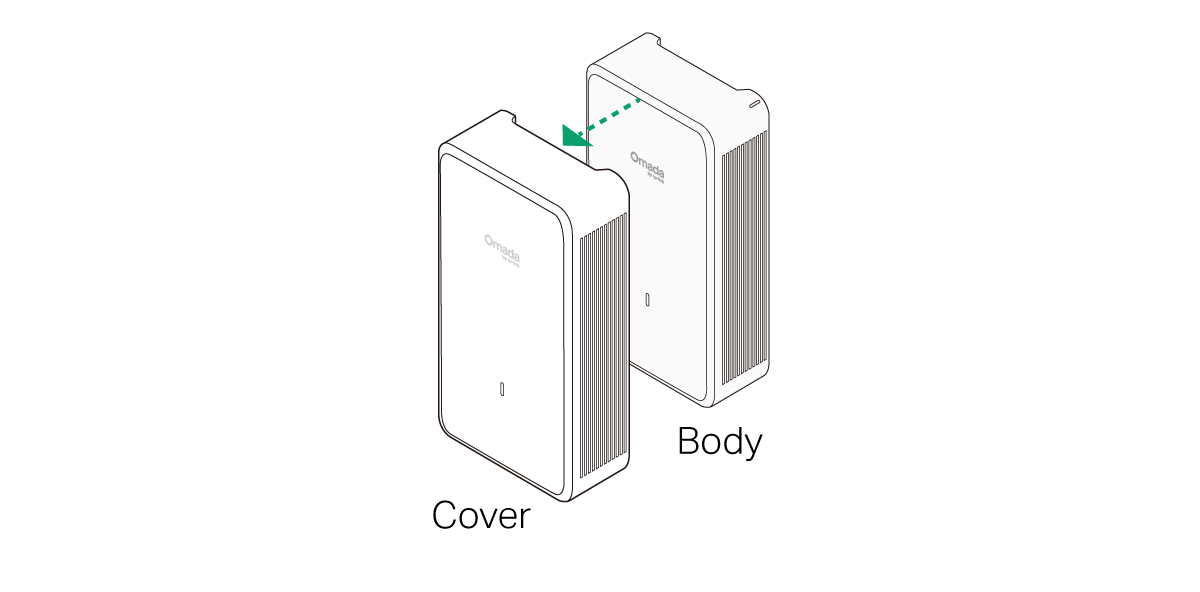

Paintable Cover

Notes:
1. If you want to paint the cover, remove it from the EAP body before painting.
2. To ensure product safety, please use the product with the cover installed.

Paintable Cover

1 Mounting

Note: This equipment shall be installed at a height of less than 2 meters.

Junction Box Mounting

Note: To ensure product safety, please use the product with the cover installed.

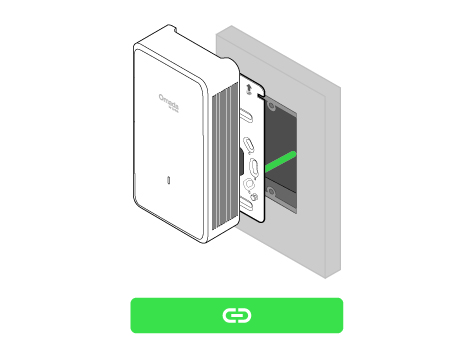

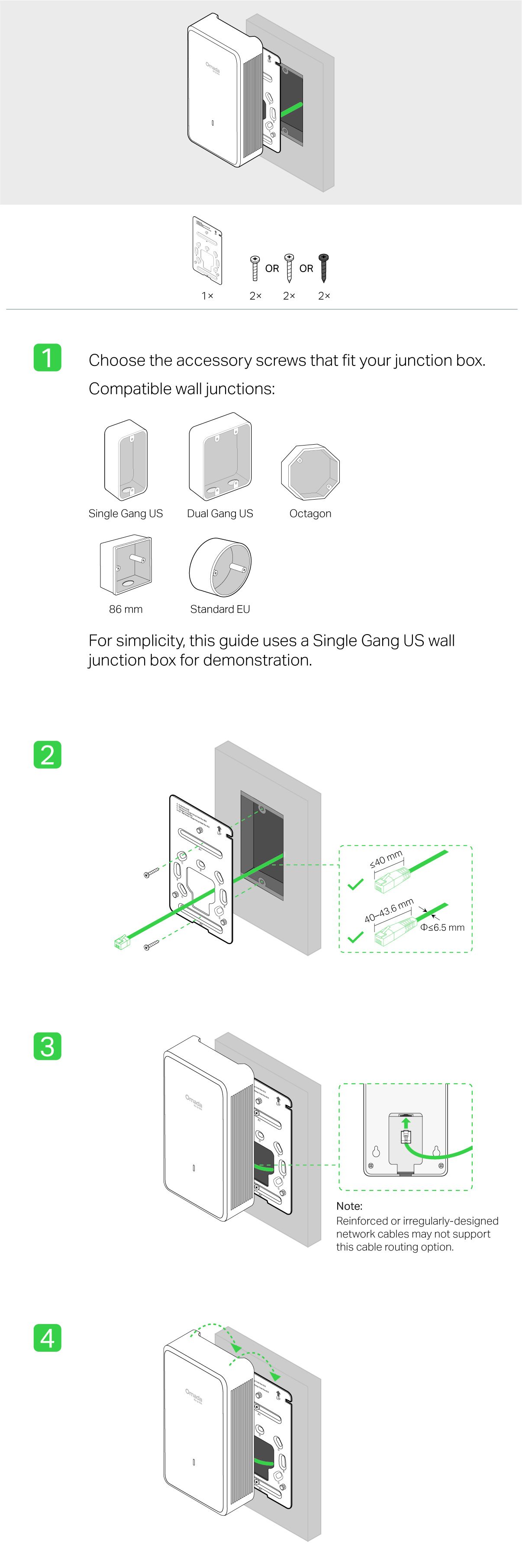

Steps - Option 1 Junction Box Mounting

Wall Mounting (Cable Through Wall)

Note: To ensure product safety, please use the product with the cover installed.

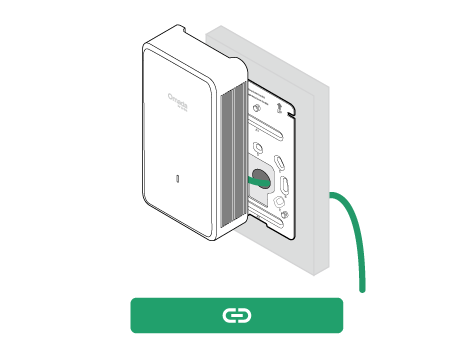

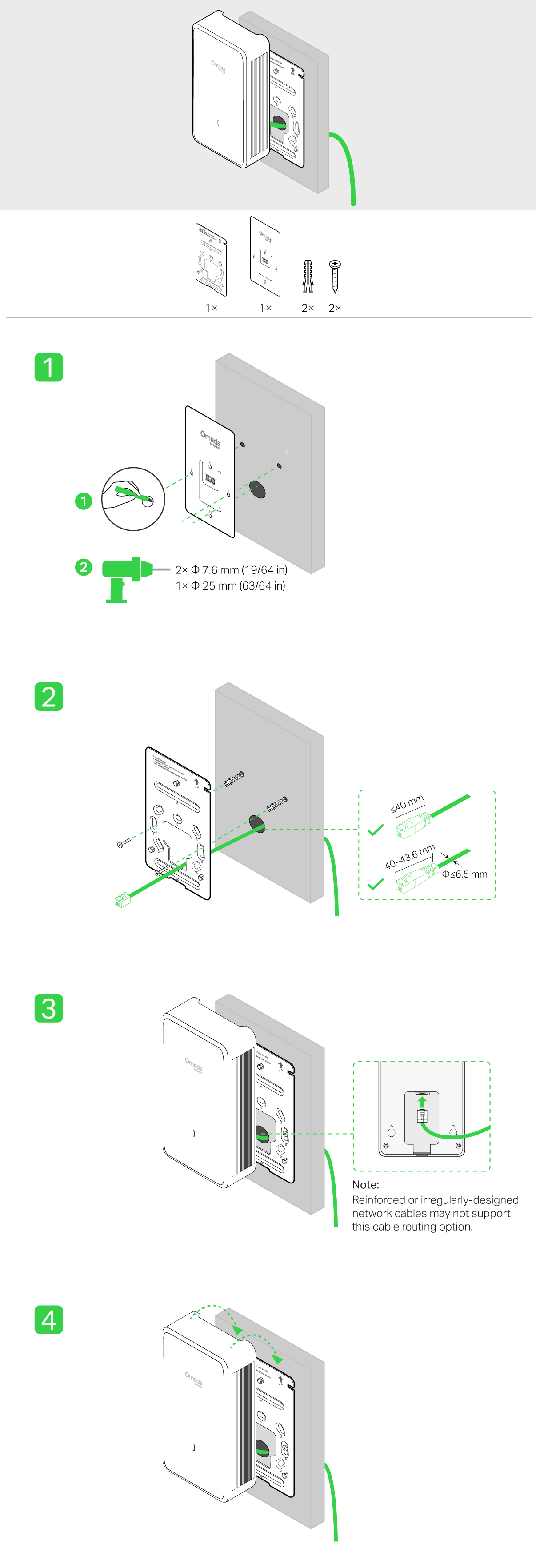

Steps - Option 2 Wall Mounting (Cable Through Wall)

Wall Mounting (Cable Along Wall)

Note: To ensure product safety, please use the product with the cover installed.

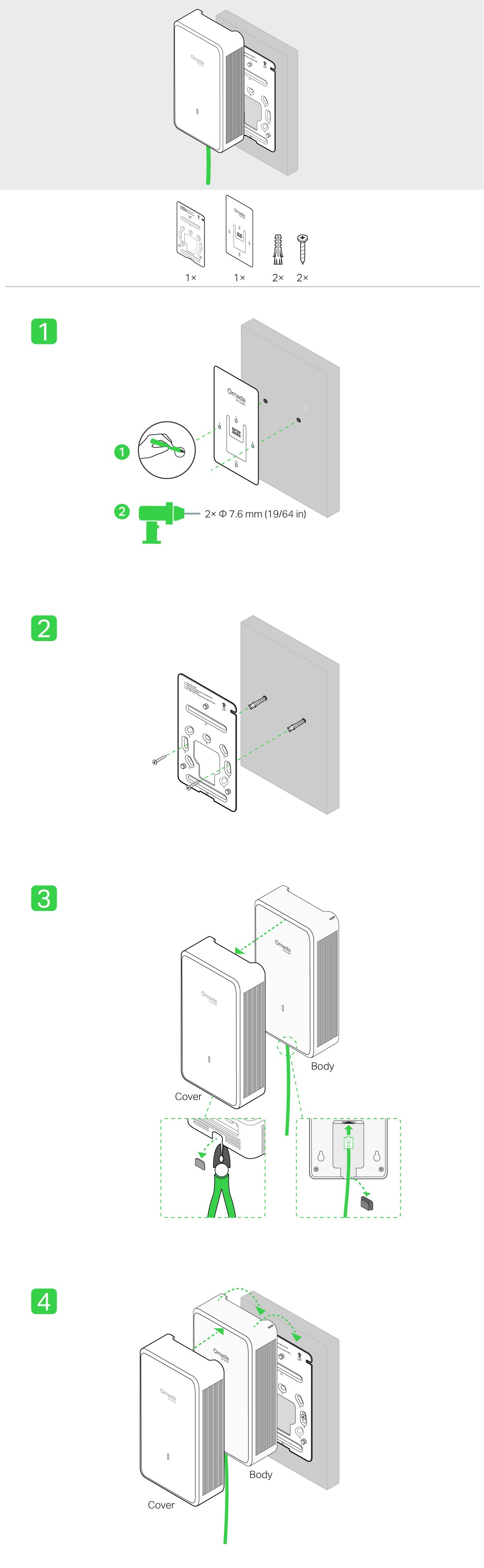

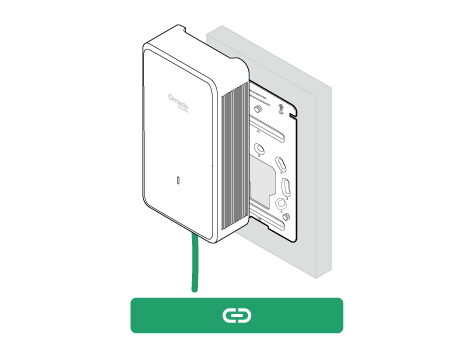

Steps - Option 3 Wall Mounting (Cable Along Wall)

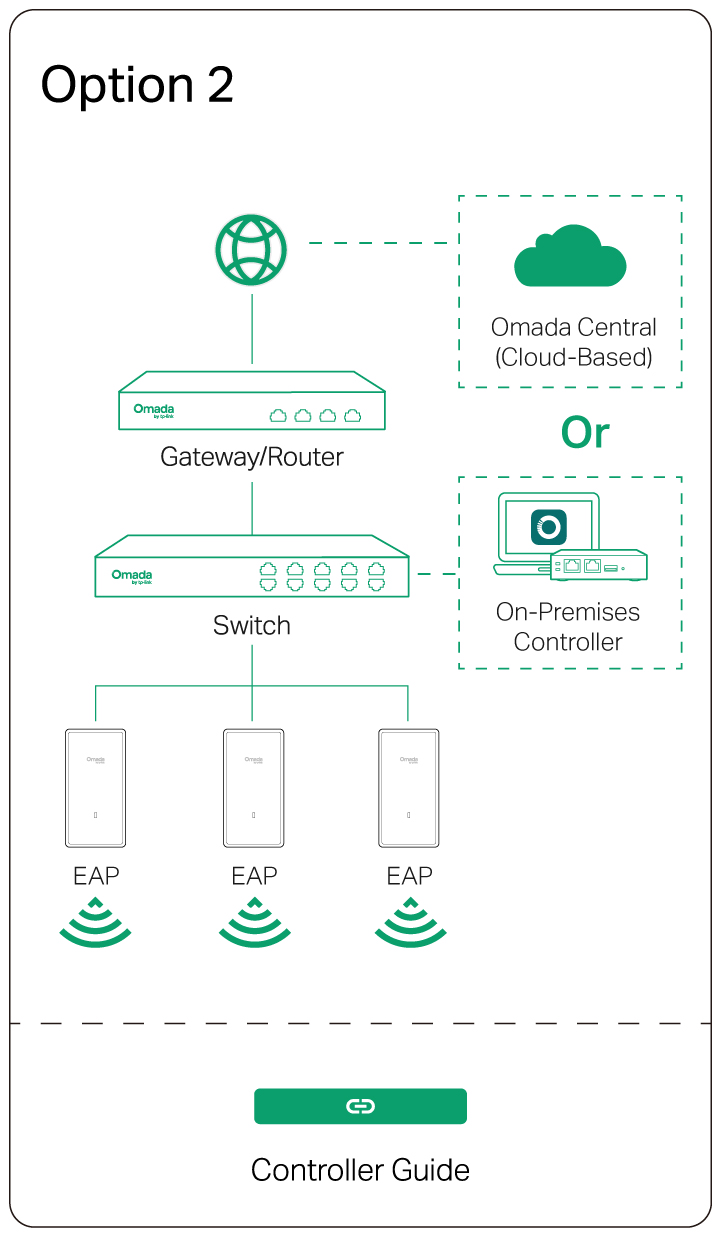

2 Configuration

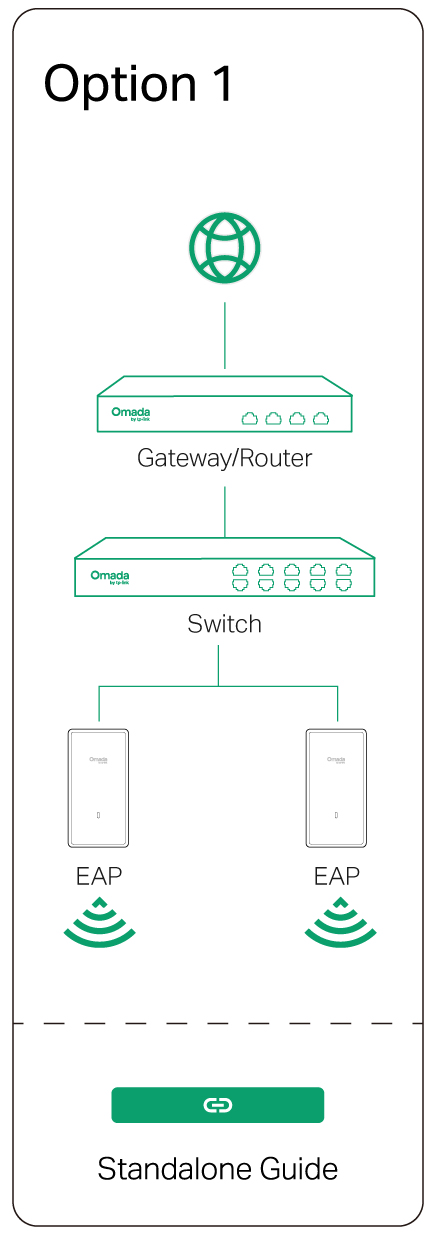

Omada App

line

Uninstalling the AP

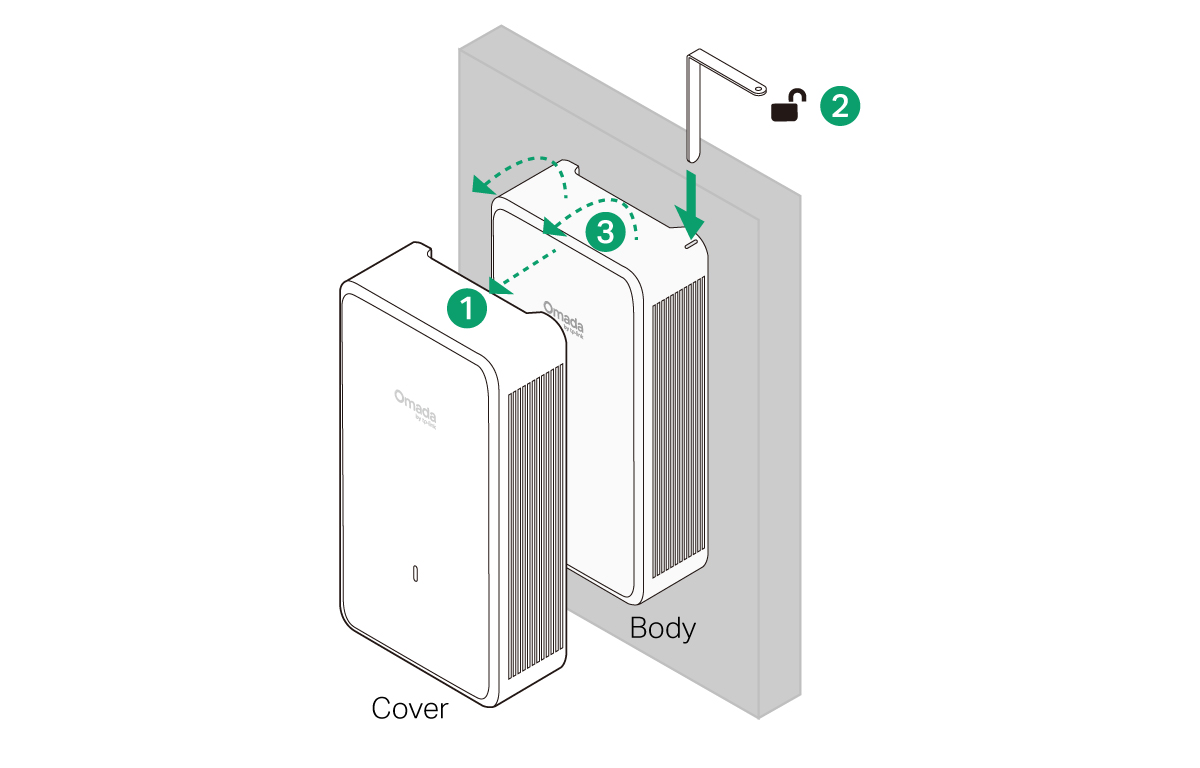

Uninstallation

Please Rate this Document
