For simplicity, we will take ES210X-M2 for example throughout the Guide. The images in this guide are for demonstration only and may differ from your actual product.
1 Installation
Desktop Installation

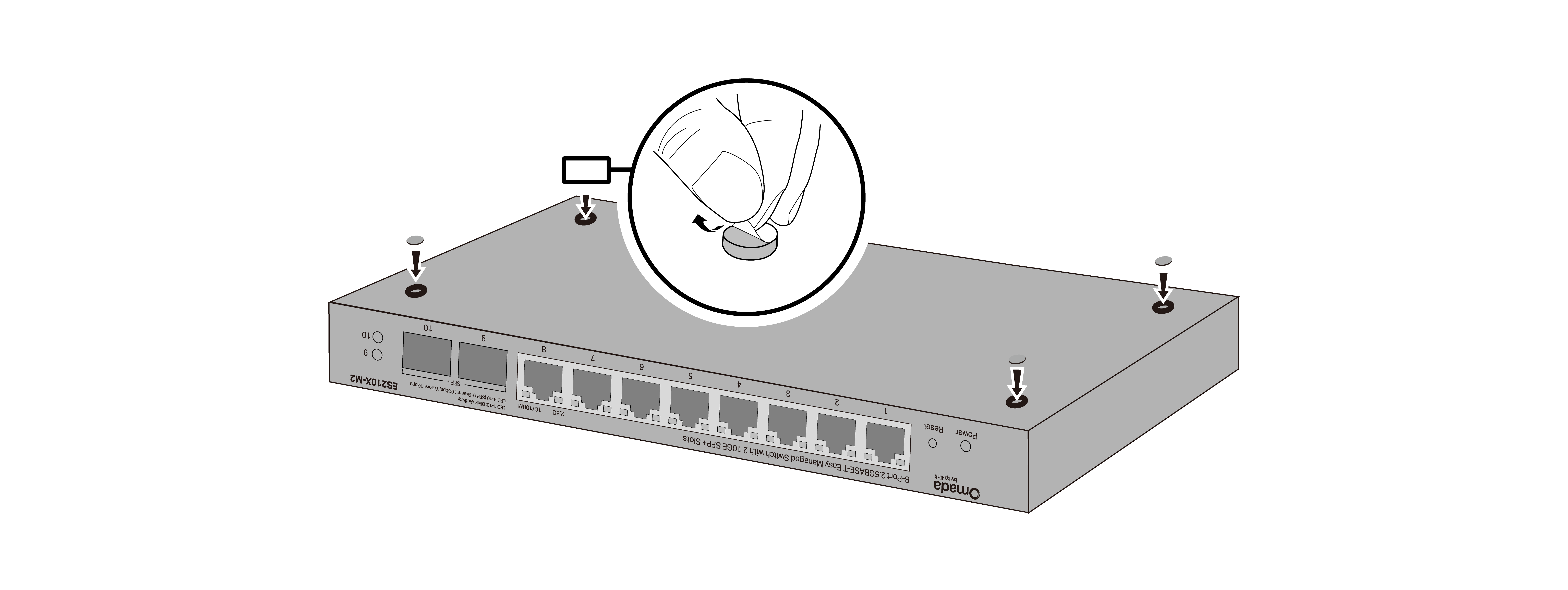

Attach the supplied rubber feet to the bottom of the switch to prevent it from slipping when placed on a desktop.
Wall-Mounting Installation

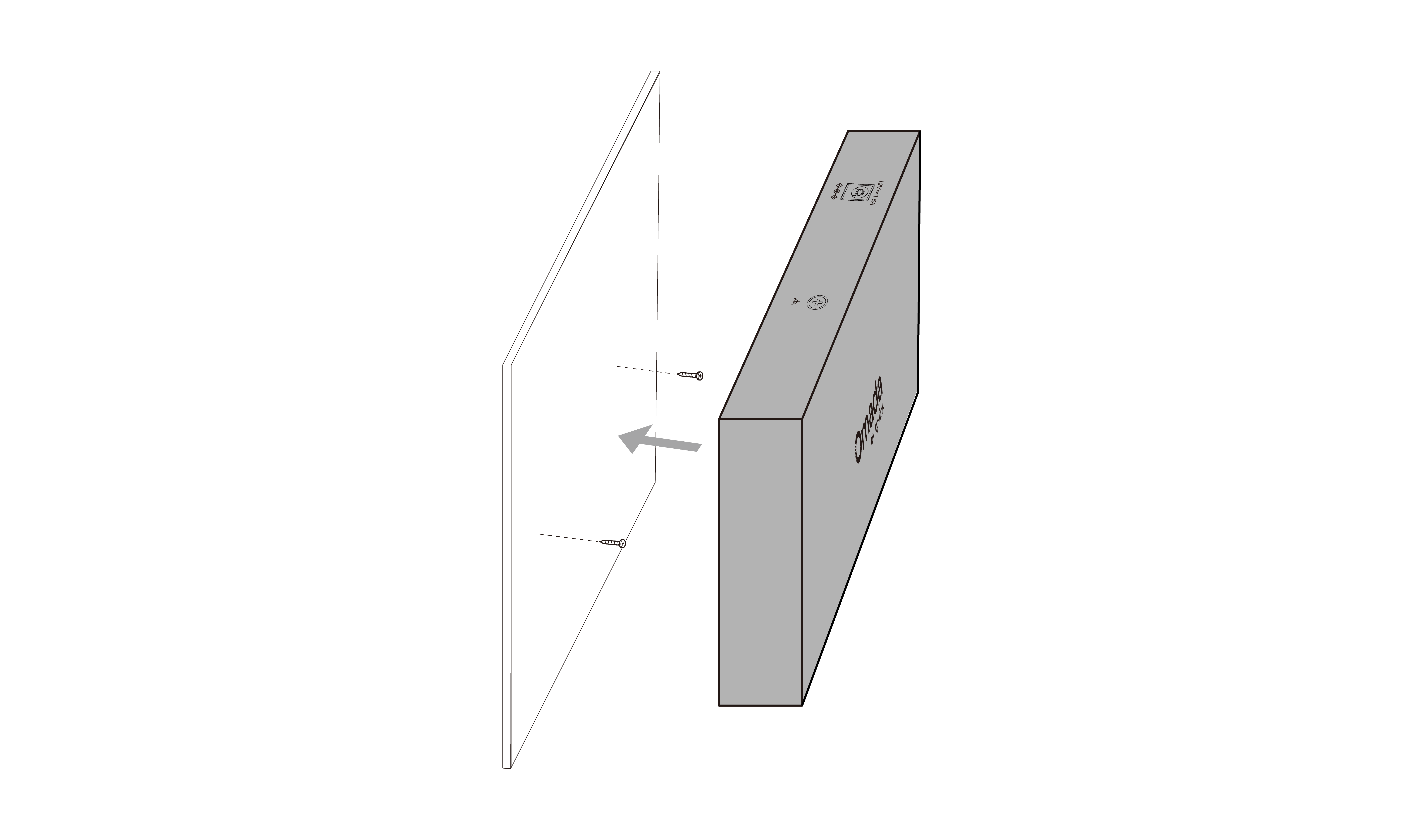

Drill two holes on the wall according to the mounting holes on the bottom of the switch, then secure the switch to the wall with two suitable screws (not provided).
Note:
For detailed information, please refer to the Wall Mounting Guide on the device’s support page.

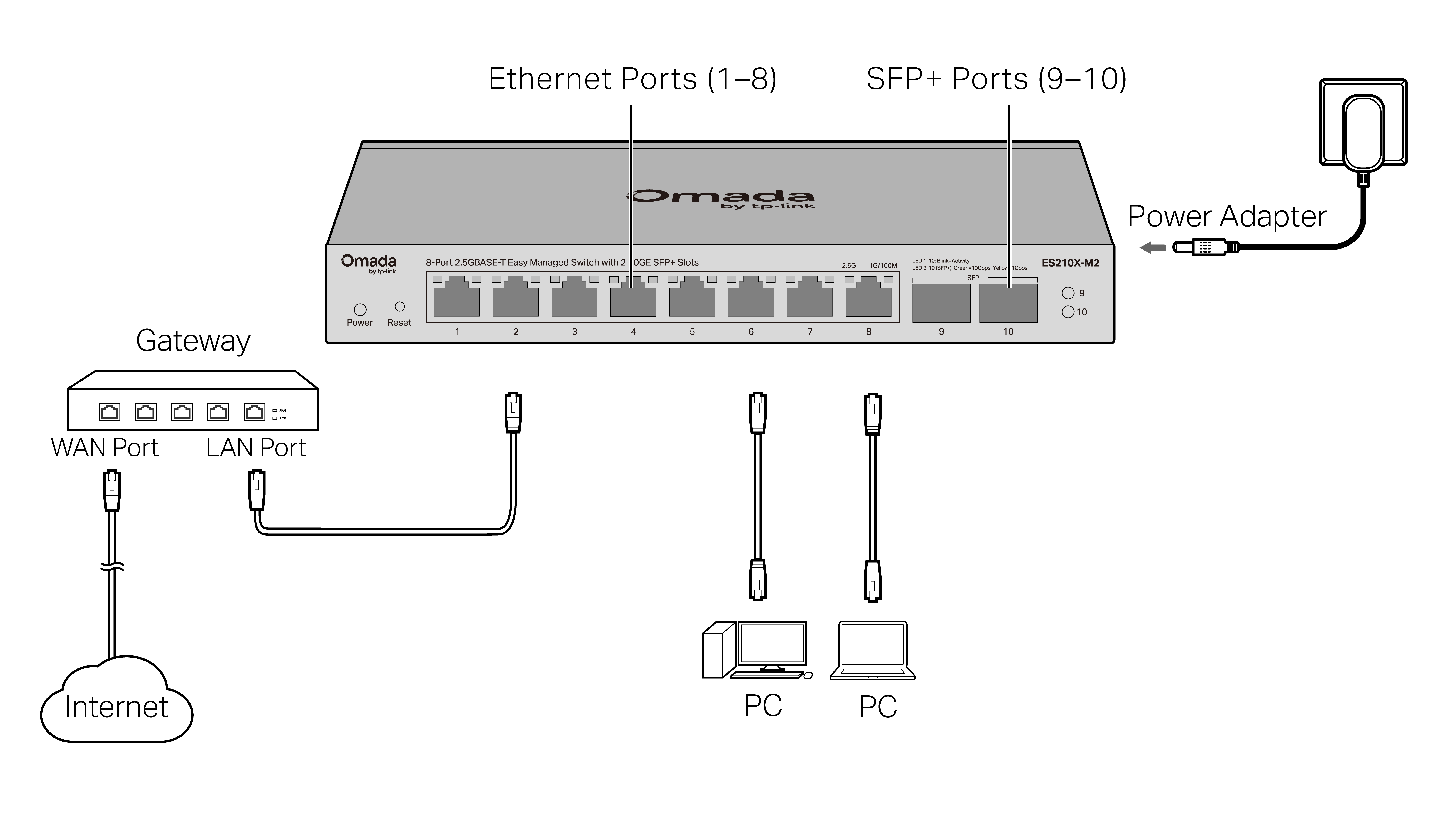

2 Connection
3 Configuration
The switch supports two configuration methods:
· Standalone Mode: Configure and manage the switch individually. To set up a standalone Omada switch, refer to https://www.omadanetworks.com/support/faq/4097/.
· Controller Mode: Configure and manage the network devices centrally. This mode is recommended for large-scale networks with numerous devices, including access points, switches, and gateways. To set up an Omada switch with an Omada Controller, refer to the Omada Controller configuration guide at https://www.omadanetworks.com/support/faq/4096/.
Omada App
With the TP-Link Omada app, you can access and manage your Omada devices at a local site or remotely with a tap of your phone. You can download and install the TP-Link Omada app from the App Store or Google Play.
For detailed instructions on device configuration, refer to the user guides of the Controller and switches. The guides can be found in the support center of our official website: https://support.omadanetworks.com/document/.
4 LED Explanation
| Power | On/Off: Power on/off |
|---|---|
|
Link/Act (2.5G) (For ports 1-5 of ES206X-M2 |
On (Green): Running at 2.5 Gbps Blinking: Transmitting/receiving data Off: No connected device |
| Link/Act (1G/100M) (For ports 1-5 of ES206X-M2 /ports 1-8 of ES210X-M2) |
On (Green): Running at 1000 Mbps On (Yellow): Running at 100 Mbps Blinking: Transmitting/receiving data Off: No connected device |
| SFP+ (For port 6 of ES206X-M2 /ports 9-10 of ES210X-M2) |
On (Green): Running at 10 Gbps On (Yellow): Running at 1000 Mbps Blinking: Transmitting/receiving data Off: No connected device |
5 Specifications
| General Specifications | |
|---|---|
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q |
| Interface | For ES206X-M2: 5 100M/1G/2.5Gbps RJ45 Ports 1 10G SFP+ Port For ES210X-M2: 8 100M/1G/2.5Gbps RJ45 Ports 2 10G SFP+ Ports |
| Transmission Media | 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) 1000BASE-T: UTP category 5e cable or above (maximum 100 m) 1000BASE-SX: 62.5 μm MMF (2 m ~ 275 m) or 50 μm MMF (2 m ~ 550 m) 1000BASE-LX: 62.5/50 μm MMF (2 m ~ 550 m) or 9 μm SMF (2 m ~ 5000 m) 1000BASE-LX10: B1.1, B1.3 SMF (2 fiber) (0.5 m ~ 10000 m) 1000BASE-BX10: B1.1, B1.3 SMF (1 fiber) (0.5 m ~ 10000 m) 2.5GBASE-T: UTP category 5e cable or above (maximum 100 m) 10GBASE-SR: OM1/OM2/OM3 or above MMF (2 m ~ 300 m) 10GBASE-LR: IEC B1.1 and B1.3 SMF (2 m ~ 10 km) |
| Switching Capacity | ES206X-M2: 45 Gbps ES210X-M2: 80 Gbps |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatically learning, automatically aging |
| Power Supply | Input: 100-240 VAC, 50/60 Hz Output: ES206X-M2: 12 V DC/1 A ES210X-M2: 12 V DC/1.5 A |
| Wall Mountable | Yes |
| Distance Between Mounting Holes | ES206X-M2: 94 mm ES210X-M2: 150 mm |
| Environmental and Physical Specifications | |
| Operating Temperature | -5 ˚C to 40 ˚C (32 ˚F to 104 ˚F) |
| Storage Temperature | -40 ˚C to 70 ˚C (-40 ˚F to 158 ˚F) |
| Operating Humidity | 10% RH to 90% RH non-condensing |
| Storage Humidity | 5% RH to 90% RH non-condensing |
6 Frequently Asked Questions (FAQ)
Q1. The Power LED is not lit.
The Power LED should be lit when the power system is working normally. If the Power LED is not lit, please check as follows:
A1: Make sure the switch and power source are properly connected through the power adapter.
A2: Make sure the power source voltage meets the input voltage requirements of both the power adapter and the switch.
A3: Make sure the power source is on.
Q2. Why is the Link/Act LED not lit while a device is connected to the corresponding port?
It is recommended that you check the following items:
A1: Make sure that the cable connectors are firmly plugged into the switch and the device.
A2: Make sure the connected device is turned on and working well.
A3: The cable must be less than 100 meters (328 feet) long. If Extend Mode is enabled, it should be less than 250 meters (820 feet).
