How to Discover Omada Devices via Omada Central

Contents

Introduction

Requirements

Configuration

Discover devices via S/N

Discover devices via Omada App

Discover devices via Inform URL

Discover devices via Omada Discover Utility

Discover devices via Controller Migration

Conclusion

Introduction

The Omada Central can manage networks and devices regardless of distance and environment. With the Omada Central, you can add and discover devices through 5 methods: inputting the device S/N, using the Omada APP, using the Inform URL, using the Omada Discovery Utility, and using Controller Migration.

The Omada Central provides multiple ways to add Omada devices:

• By inputting S/N or device key, you can add online and offline devices;
• Omada APP enables you to easily and quickly add devices to the Omada Central;
• Inform URL and Omada Discovery Utility are suitable for adding online devices;
• Migration is suitable for migrating devices that are already managed by other controllers.

This article will describe these methods in detail.

Requirements

• Omada Central
• Omada app
• Omada Discovery Utility
• Omada devices

Configuration

Discover devices via S/N

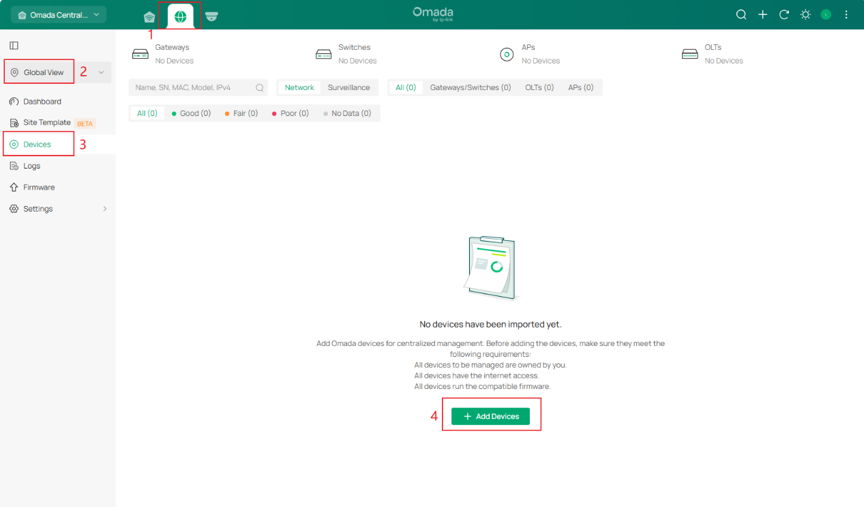

Step 1. Launch the Omada Central page, and go to Omada Network > Global View > Devices. Click Add Devices.

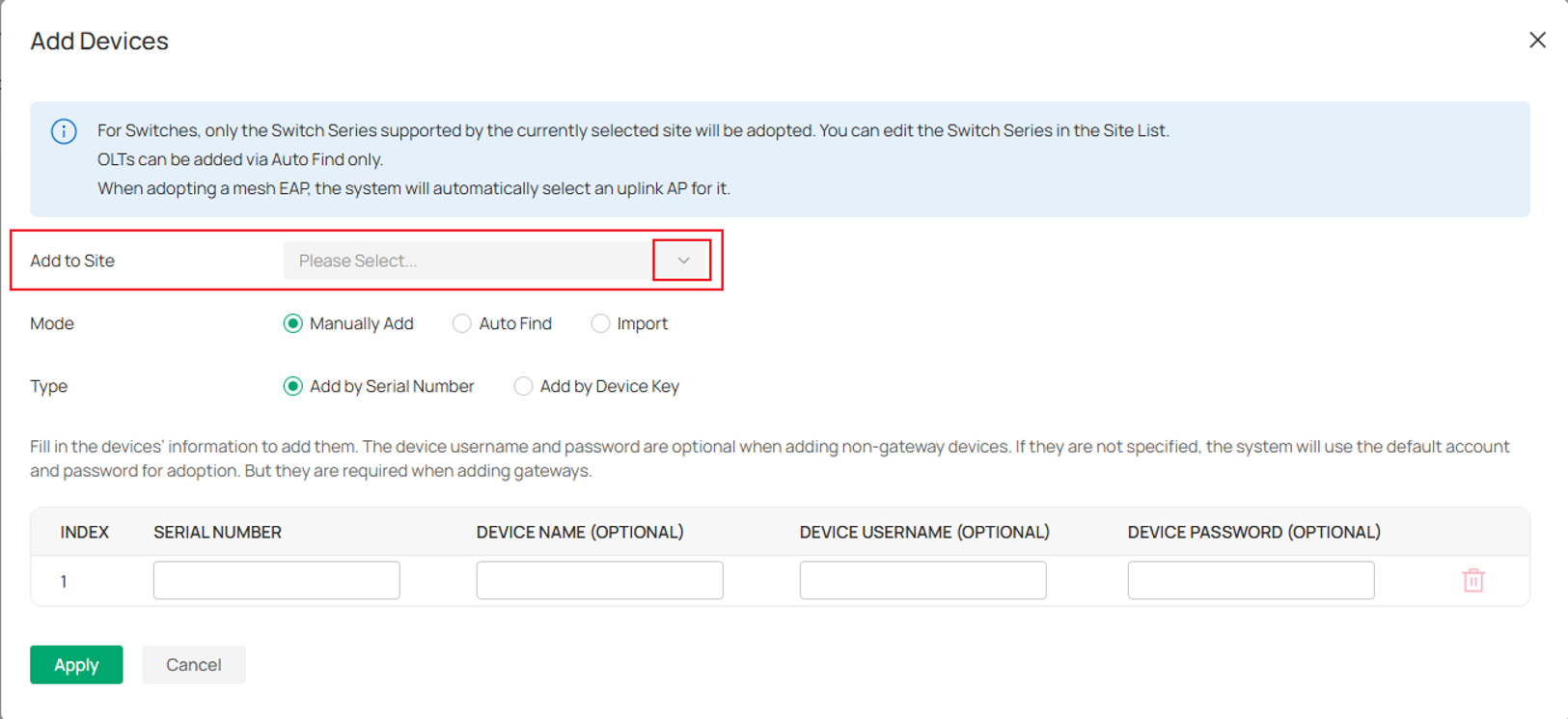

Step 2. Select the site to add devices.

Step 3. Choose a mode to add devices via S/N.

• Manually Add

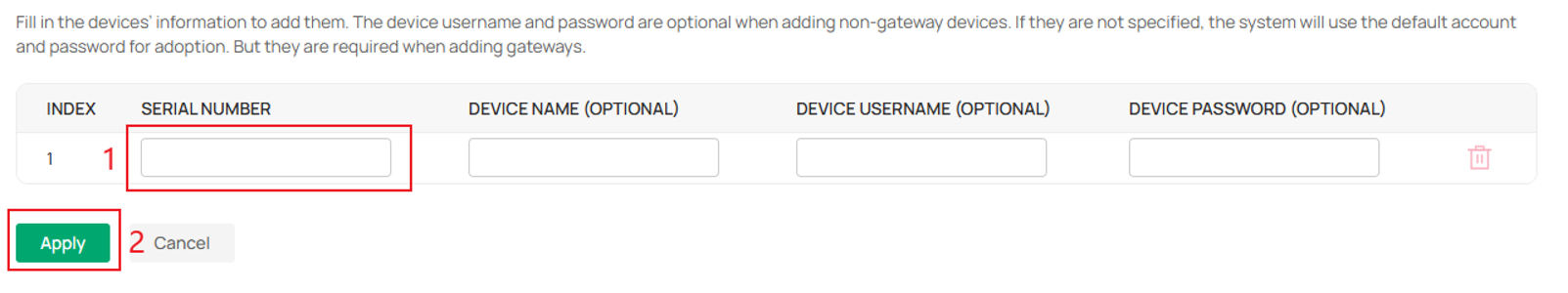

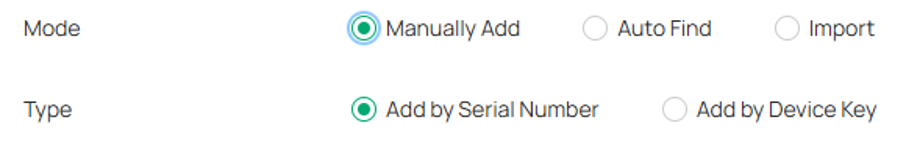

Choose Manually Add. In the S/N field, enter the S/N displayed on the product package or label. Click Apply to add the device.

• Import

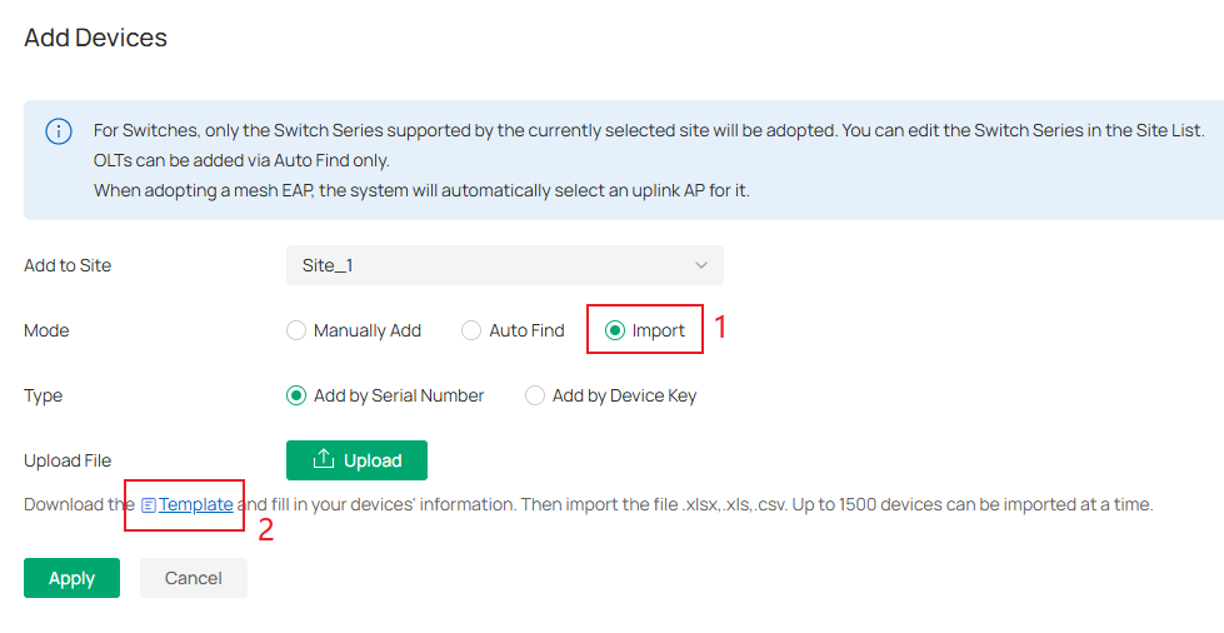

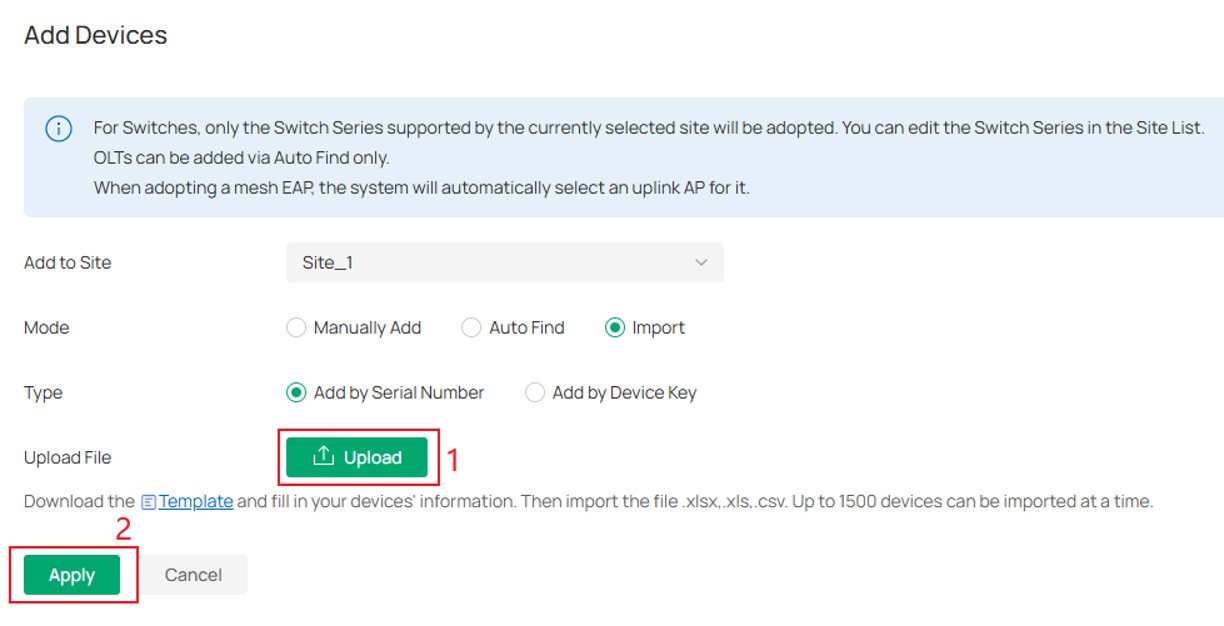

Choose Import. Choose whether to add with the type S/N or Device Key. Click Template to download the template. In the template, you can enter up to 1500 device. Save the template after editing.

Click Upload to import the template. Click Apply to add the devices.

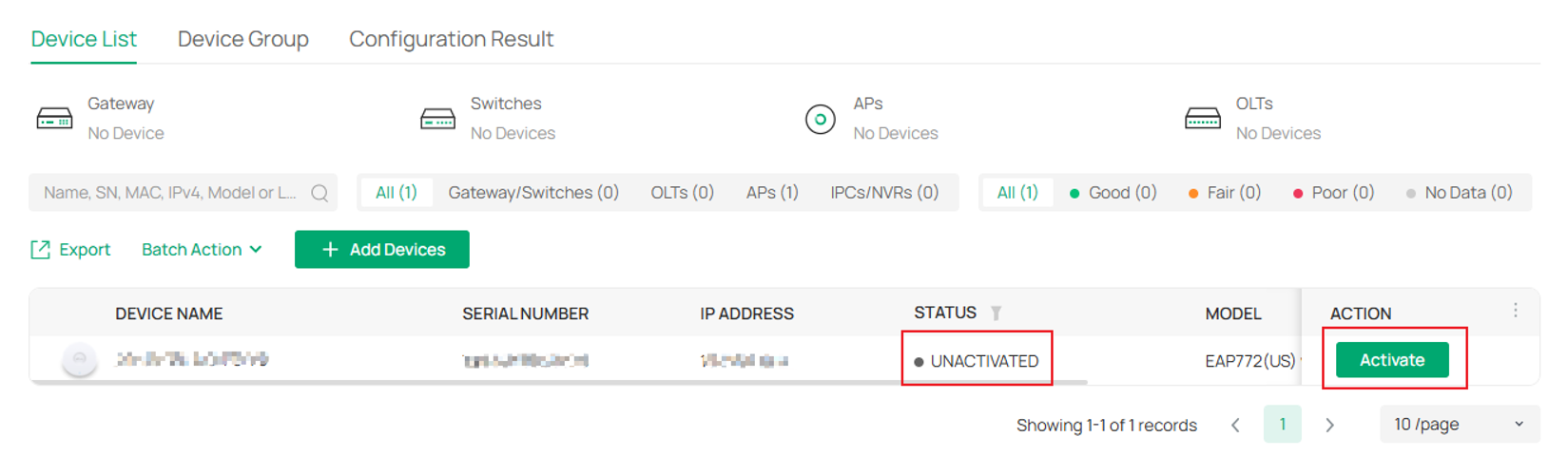

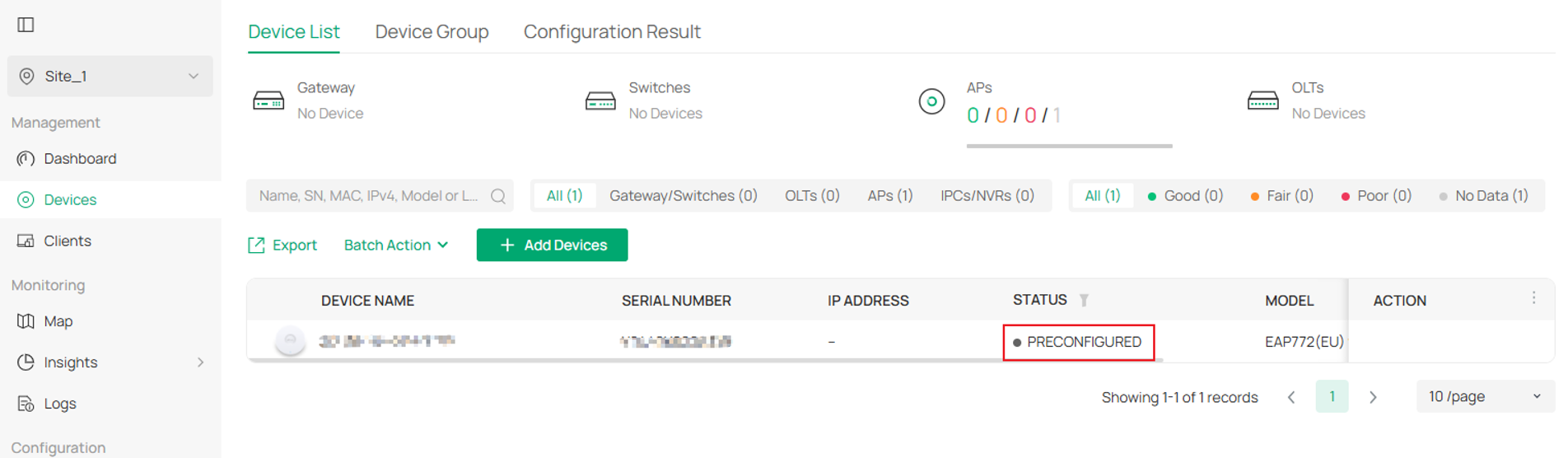

Step 4. Then you can check the device list in your Site at Devices > Device List. If the devices are not connected to the internet, they will be in the PRECONFIGURE state.

After the devices are connected to the internet, the Omada Central will automatically adopt the devices, and the device status will change to UNACTIVATED in the Omada Central Standard. Make sure there is enough licenses when using Omada Central Standard.

When the devices are online and activated, their status will become CONNECTED and they are now successfully adopted to the Omada Central.

Discover devices via Omada app

Step 1. Open Omada APP, choose the organization you want your devices added to. On the Devices page, click the "+" icon.

Step 2. Click Scan to Add. Then, scan the label attached to your device, or manually enter the device’s S/N, and the device will pop up. Click Add This Device.

Step 3. Select the Site to add the device, and click Next.

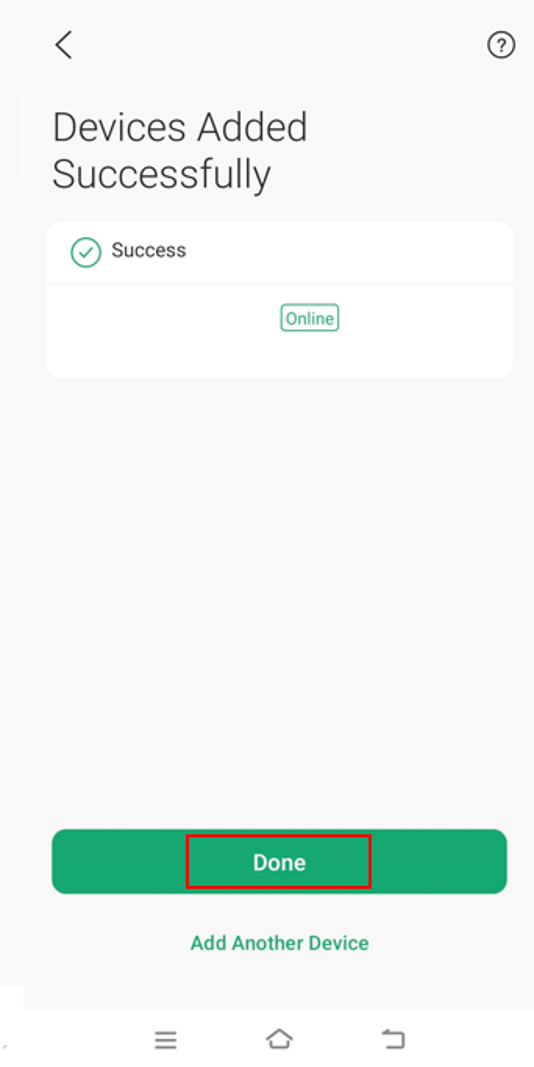

Step 4. There will be notification saying that your device has already been added to the Omada Central. Then click Done.

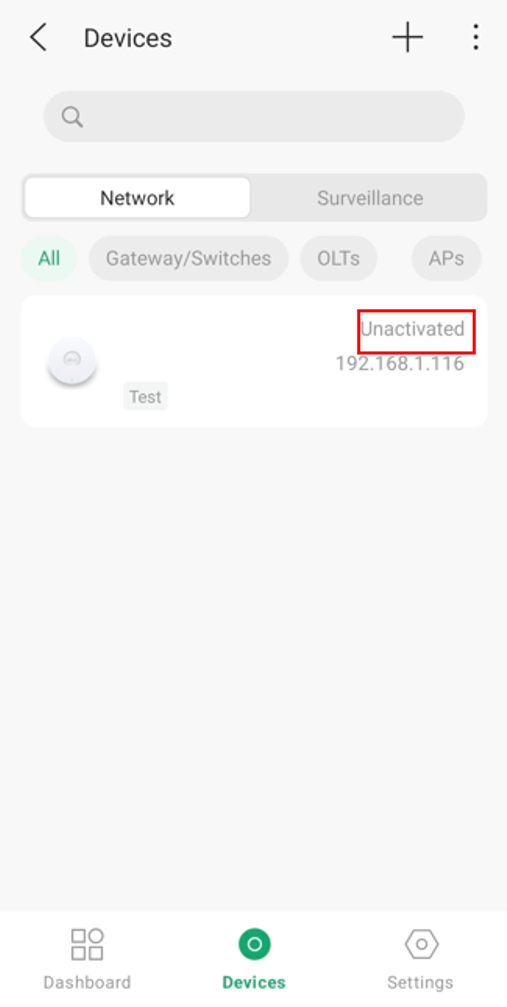

Step 5. You can check the added device in the device list. If the device is not connected to the internet, it will be in the Preconfigured state.

After the device is connected to the internet, Omada Central will automatically adopt the device, and the device status will change to Unactivated.

Discover devices via Inform URL

Step 1. Obtain the Inform URL.

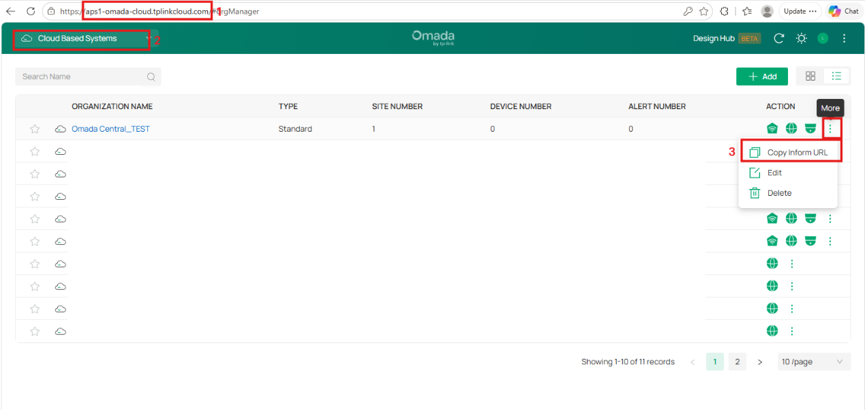

Log in to the Omada Cloud Portal and go to Cloud Based Systems > More > Copy Inform URL. Click on the Copy Inform URL button to copy Omada Central’s URL.

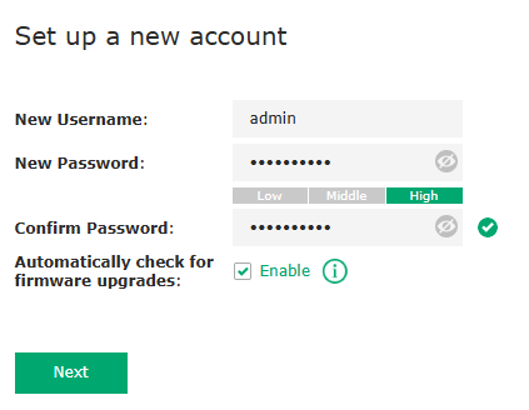

Step 2. Enter the IP address of the device to be managed in the browser address bar and log in to the device web management page. The device username/password for the first login is admin/admin. You need to set up a new account before you can log in.

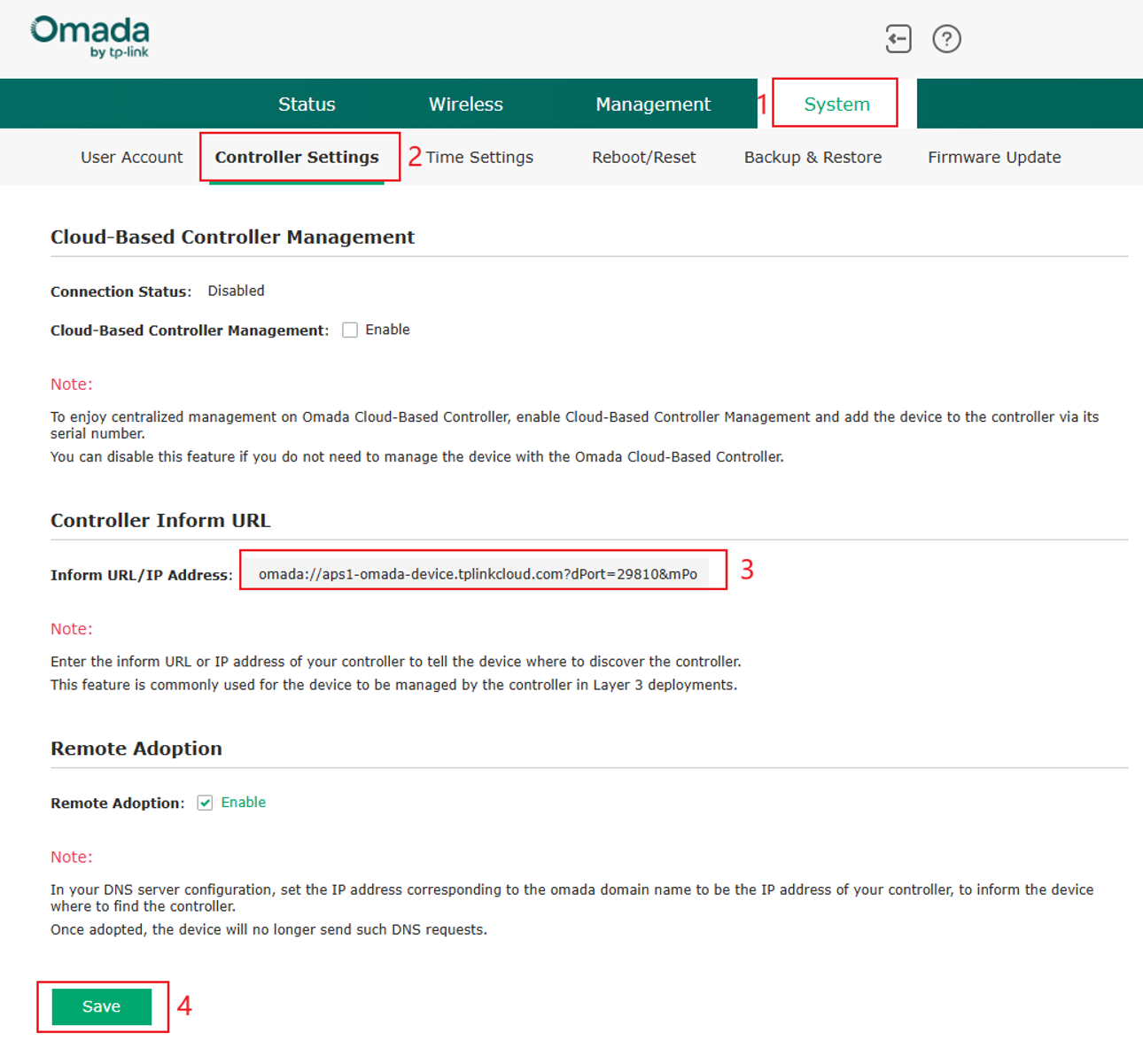

Step 3. On the web management page, go to System > Controller Settings, paste the Inform URL copied from the Omada Central in the Inform URL/IP Address field, and click Save to complete the device addition.

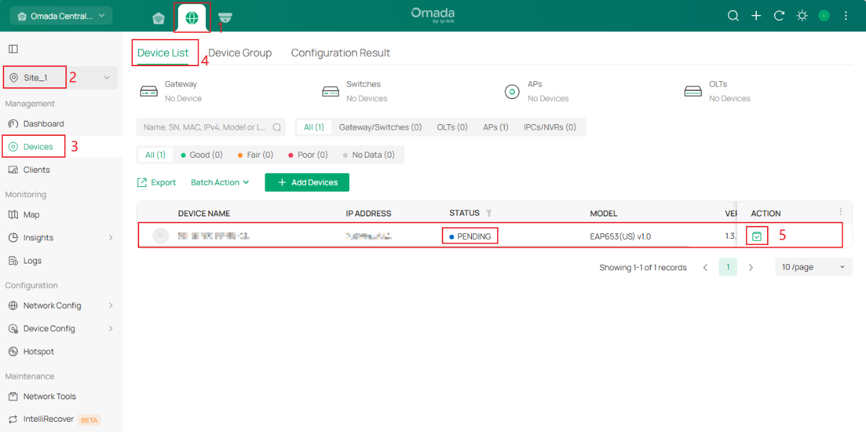

Step 4. Log in to the Omada Central, go to the site, and go to Devices > Device List. You can see the added device in the PENDING state and adopt it.

Discover devices via Omada Discover Utility

Step 1. Obtain the Inform URL.

Log in to the Omada Cloud Portal and go to Cloud-Based Systems > More > Copy Inform URL. Click on the Copy Inform URL button to copy Omada Central’s URL.

Step 2. Download the latest Omada Discovery Utility from the TP-Link official website. After opening it, the Utility will automatically search for all network devices in the LAN. For instructions about how to install Omada Discovery Utility, please refer toHow to Install Omada Discovery Utility on Windows and macOS PCs.

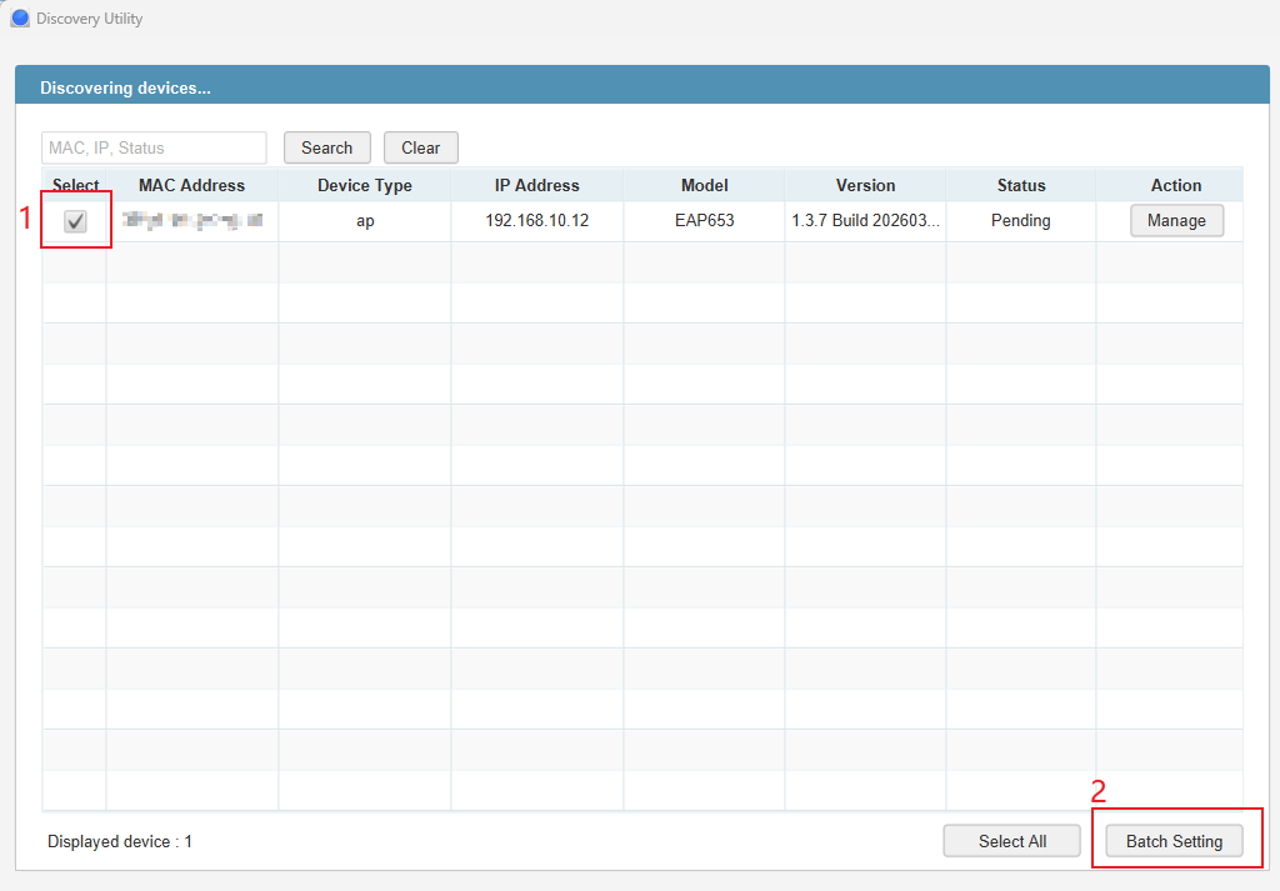

Step 3. Select the devices you want to add and click Batch Setting.

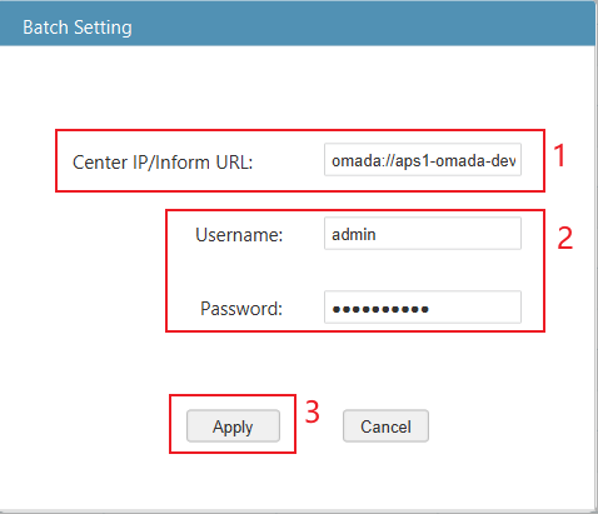

Step 4. In the Center IP/Inform URL field, enter the URL you copied, enter the device username and password, and click Apply to add the device.

Step 5. Log in to the Omada Central, go to the site, and go to Devices > Device List. You can see the added device in the PENDING state and adopt it.

Discover devices via Controller Migration

Step 1. Obtain the Inform URL.

Log in to the Omada Cloud Portal and go to Cloud Based Systems > More > Copy Inform URL. Click on the Copy Inform URL button to copy Omada Central’s URL.

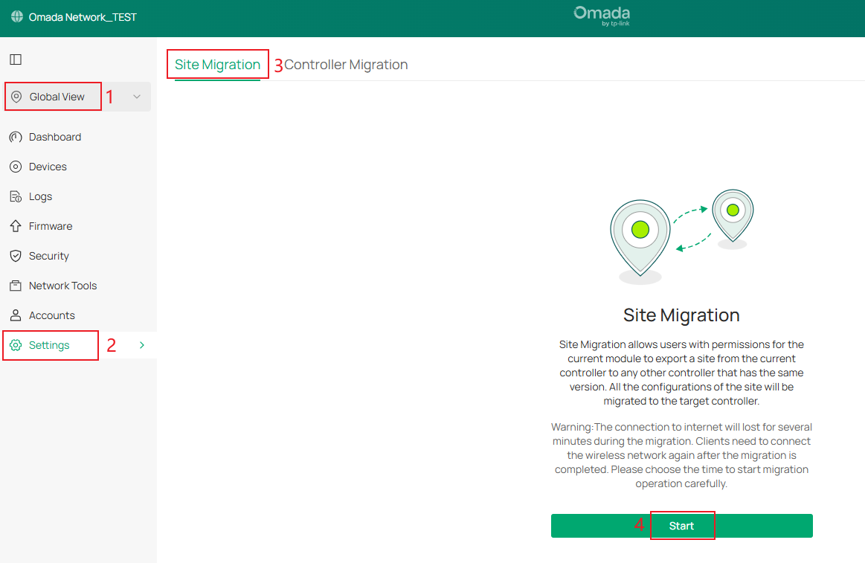

Step 2. In the Global view of the Controller where the current device is located, go to Settings > Migration > Site Migration.

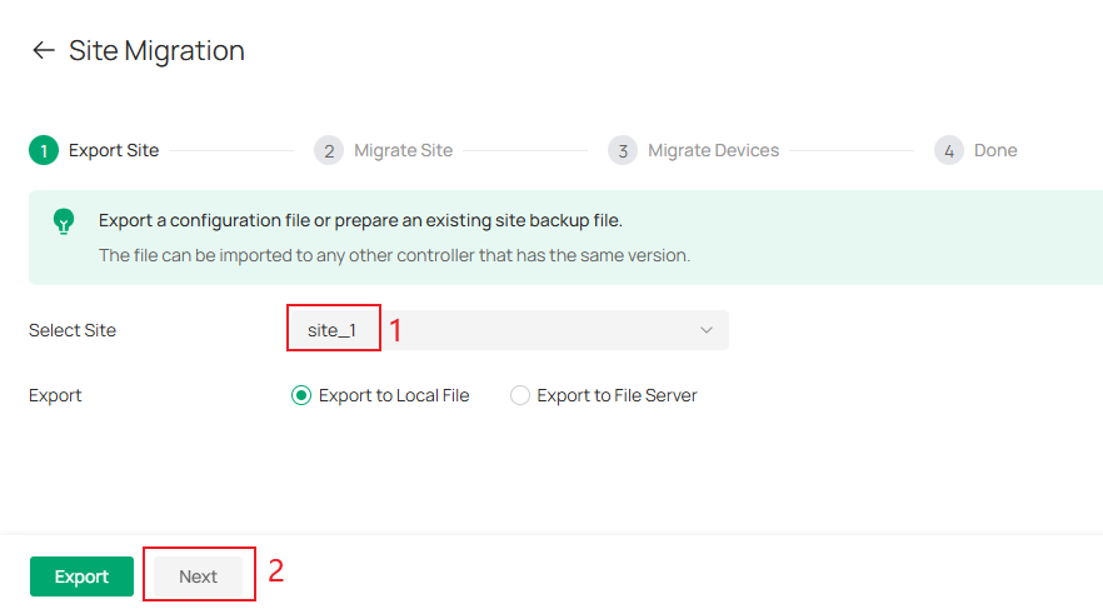

Step 3. Click Start, select the site where the device is located, and click Next.

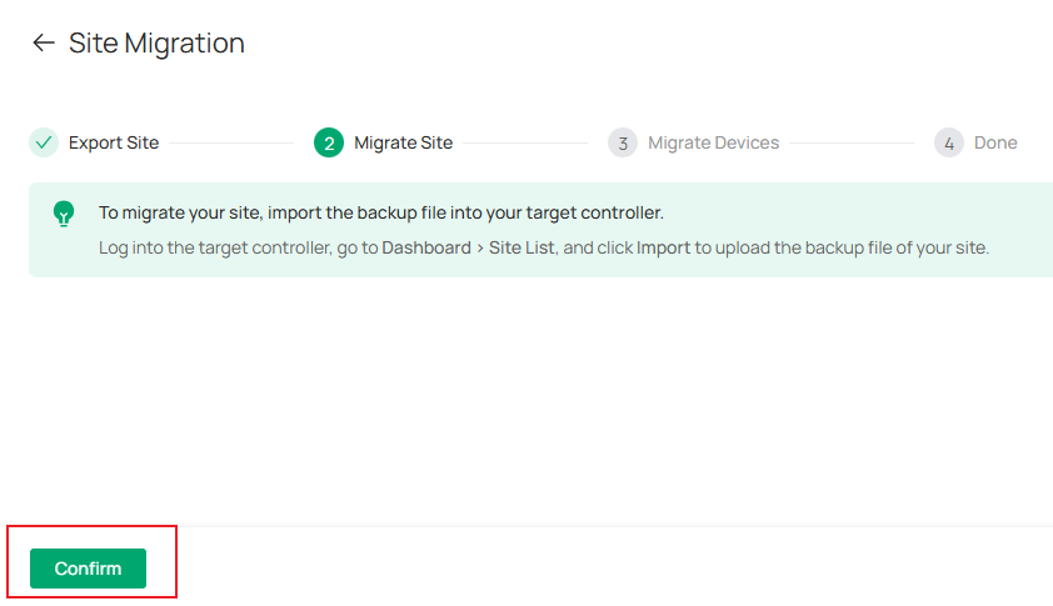

Step 4. Click Confirm in Migrate Site.

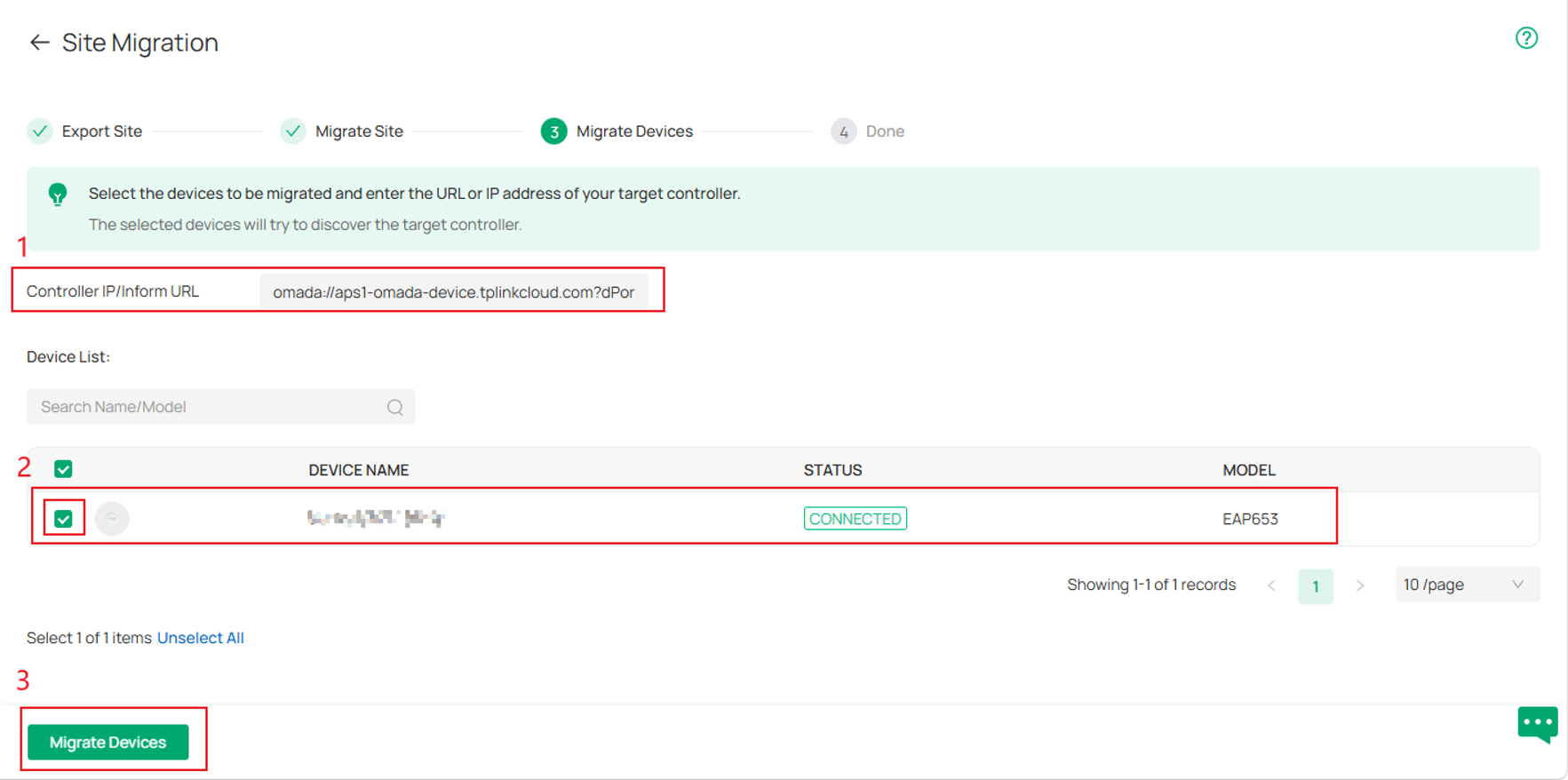

Step 5. In the Controller IP/Inform URL field, paste the Inform URL you copied, and select the device to be migrated.

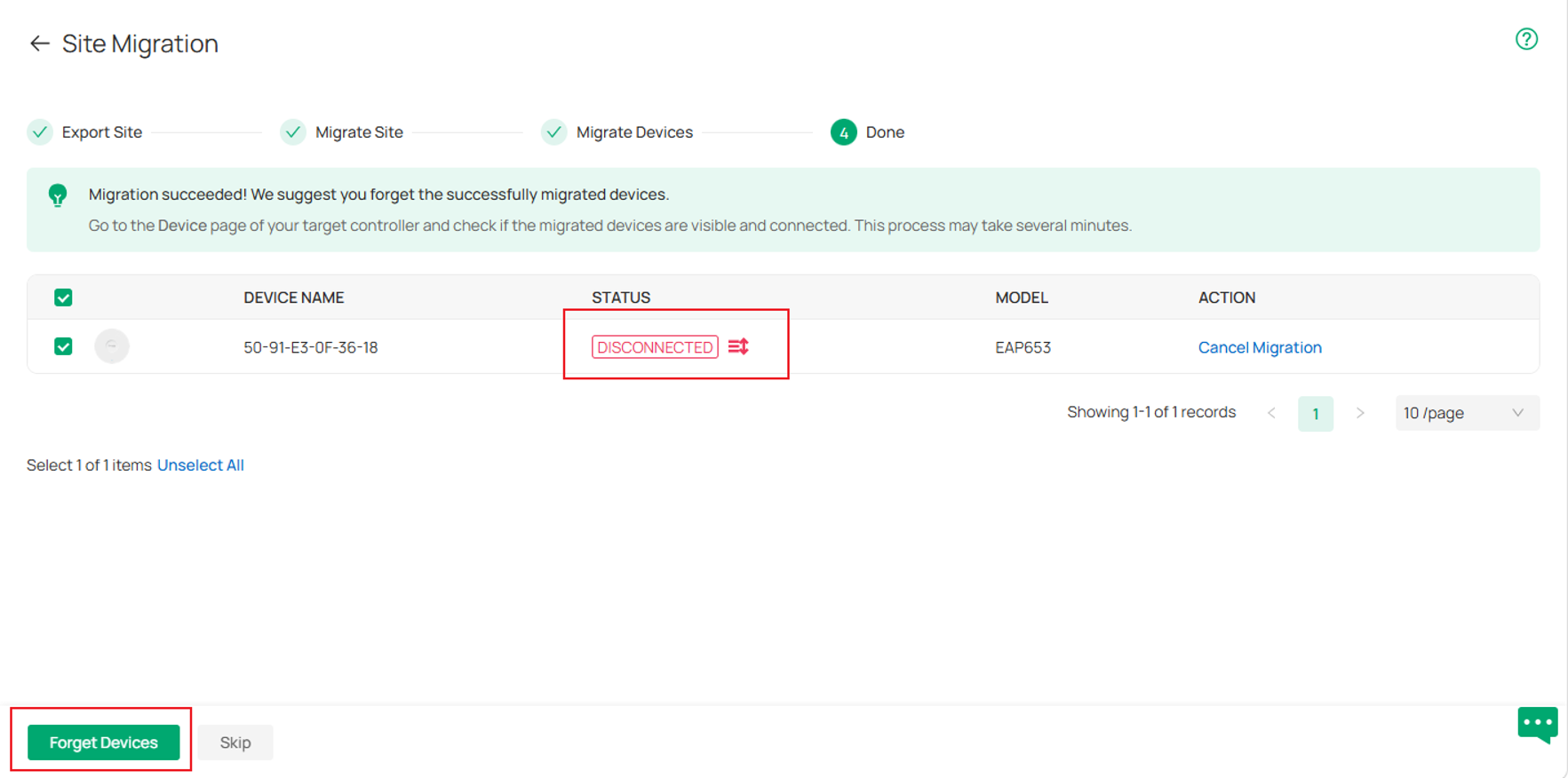

Step 6. Click Migrate Devices to enter the Done page. The device will change to the DISCONNECTED state. Click Forget Devices or Skip to complete the device migration.

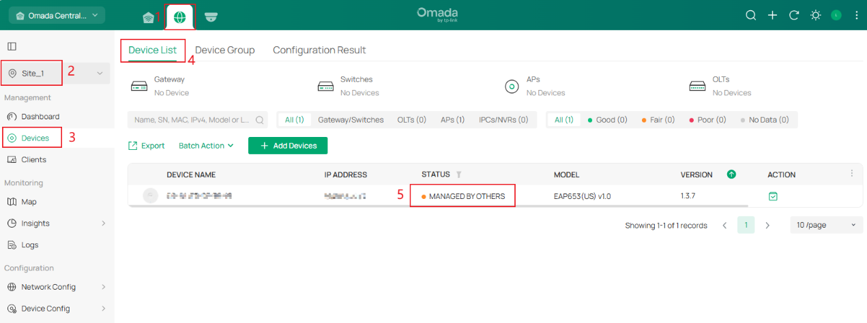

Step 7. Log in to the Omada Central, and go to Site View > Devices > Device List. You can find that the device is in the MANAGED BY OTHERS state, indicating that the migration is successful.

Conclusion

Now you know 5 methods for discovering Omada devices via Omada Central. Please choose the method that suits your needs from these options.

To learn more about each function and configuration, please visit Support Home to download or check the manual for your product.

QA

Q1: How can I obtain the Inform URL if my Cloud‑Based system is operating in MSP mode of Network system only?

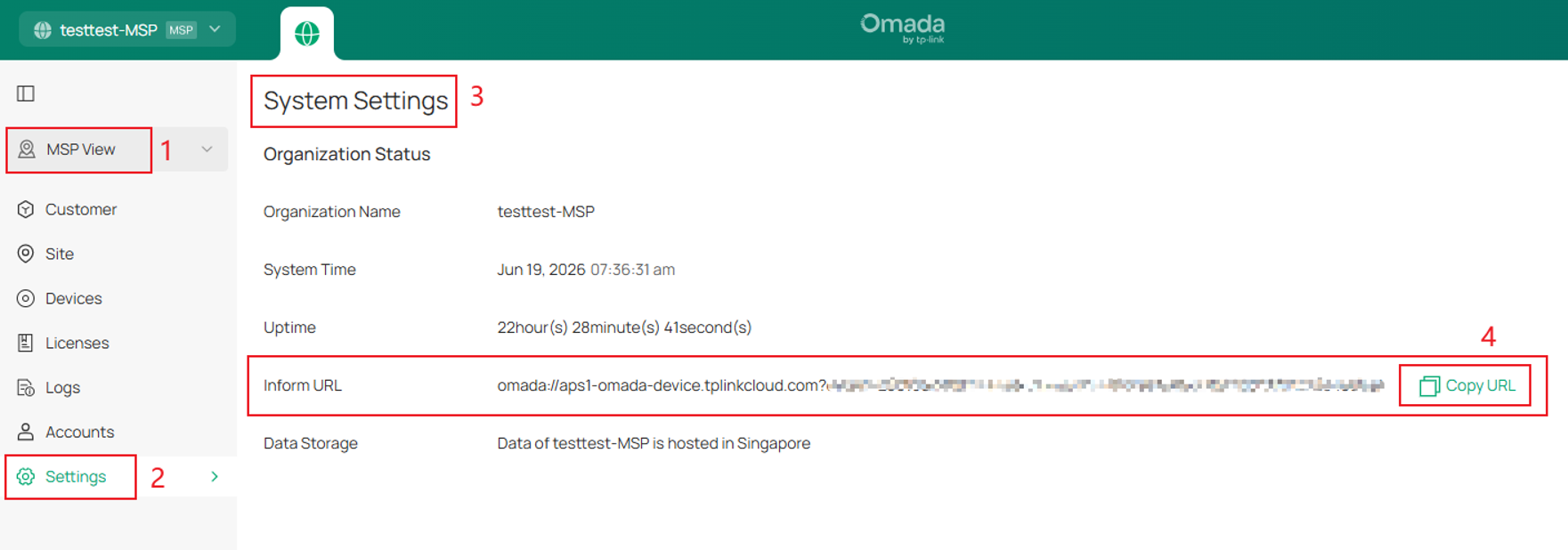

A1: In MSP mode, please go to MSP View > Settings > System Settings and click the Copy URL button to copy the URL.

Note：The Omada Central doesn’t support MSP mode now, the Omada Network only of Cloud-based standard organization can support MSP mode.
